Mother Board para Windows 7

Info para quienes quieran actualizar la Máquina sin gastar demasiado...

Testeando varias Mother Board, y comparando rendimiento vs costo, la mejor opción que se encuentra en el mercado hasta el momento es la GA-MA78GM-S2H (rev. 2.x) con chipset AMD... que trae una aceleradora de video Ati-Redion que realmente se la banca..!!!!

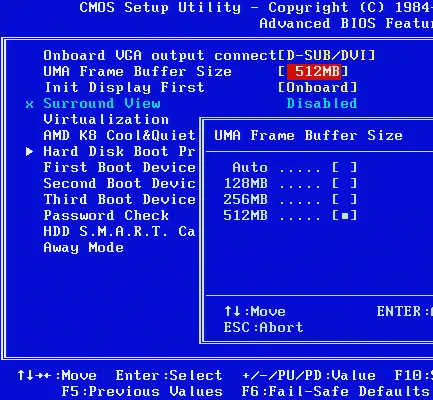

Soporta hasta 512 MB de memoria on-board. Y con el chipset Realteck ALC889A tenés DTS 7.1 y DTS-NEO on-board, una barbaridad..!!!

A continuación las especifícaciones tecnicas en general...

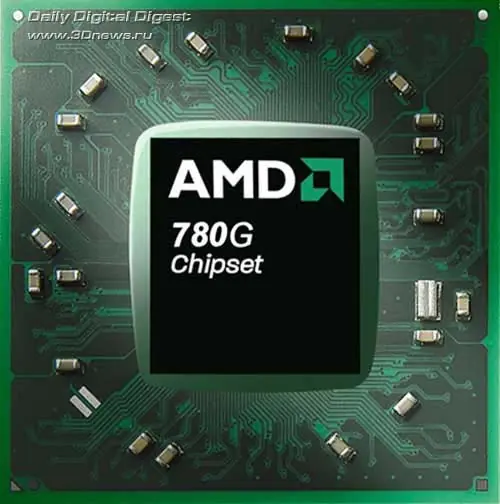

AMD 780G + SB700 Chipset


Soporte para la serie de procesadores AMD Phenom / Athlon
Capacitores Sólidos en el VRM del CPU
Soporte para memoria Dual Channel DDR2 1066 para obtener un rendimiento notable en el sistema

Video integrado ATI Radeon HD3200 (DirectX10)






Increíble rendimiento gráfico con la interfaz PCI-E 2.0 x16 y soporte para ATI Hybrid CrossFireX
Interfaz SATA 3Gb/s con función RAID
Conexión Gigabit Ethernet y IEEE1394

Audio de alta definición ALC889A







Interfaz integrada HDMI/ DVI con HDCP




DualBIOS para la máxima protección de tu sistema
* Los 1066 MHz de velocidad en memoria dependen del CPU usado, por favor lee la lista de soporte de memoria para más información.












Procesadores que soporta... (yo la armé con un Phenom x3 y corre todos los juegos, inclusive el Wanted, que tiene efectos increibles..)

Video del Juego:

link: http://www.videos-star.com/watch.php?video=awbBDIzWsKo

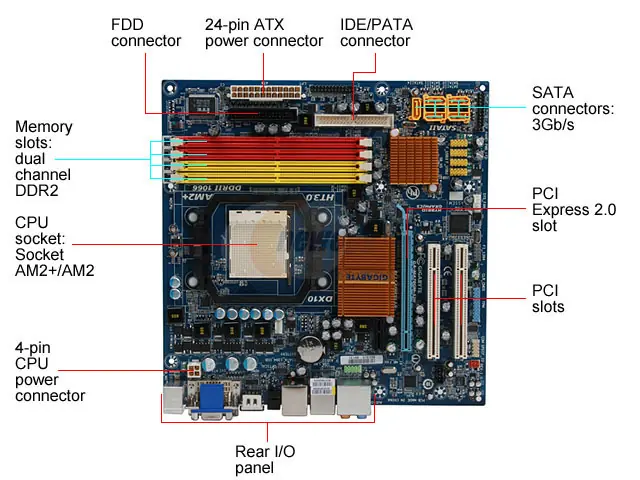

Detalles específicos de la Mother Board

Support for Socket AM3 / AM2+/ AM2 processors: AMD Phenom™ FX processor/ AMD Phenom™ X4 processor/ AMD Phenom™ X3 processor/ AMD Athlon™ X2 processor/ AMD Athlon™ processor/ AMD Sempron™ X2 processor/ AMD Sempron™ processor
Hyper Transport Bus
5200/2000 MT/s
Chipset
North Bridge: AMD 780G
South Bridge: AMD SB700
Memory
4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR2 1066 (Note 2)/800/667 MHz memory modules



Audio
Realtek ALC889A codec
High Definition Audio
2/4/5.1/7.1-channel
Support for DTS (dts NEOC, dts INTERACTIVE)
Support for S/PDIF In/Out



Support for CD In
LAN
Realtek 8111C chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
1 x PCI Express x1 slot
2 x PCI slots




Storage Interface South Bridge:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
5 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3, SATAII4) supporting up to 5 SATA 3Gb/s devices
1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device
Support for SATA RAID 0, RAID 1, RAID 10 and JBOD
iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
IEEE 1394 T.I. TSB43AB23 chip
Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
USB Integrated in the South Bridge
Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
5 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x North Bridge fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In/Out header
1 x IEEE 1394a header
4 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x chassis intrusion header
1 x power LED header



Comparativa con Asus...




Rear Panel I/O
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port (Note 3)
1 x HDMI port
1 x optical S/PDIF Out connector
1 x eSATA 3Gb/s port
1 x IEEE 1394a port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O
ITE IT8718 chip
H/W Monitoring System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control (Note 4)
BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for @BIOS
Support for Download Center
Support for Q-Flash
Support for EasyTune (Note 5)
Support for Xpress Install
Support for Xpress Recovery2
Support for Virtual Dual BIOS
Bundle Software
Norton Internet Security (OEM version)
Operating System
Support for Microsoft® Windows 7(seven)
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm





Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
Note (Note 1) Due to Windows® XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Whether 1066 MHz memory speed is supported depends on the CPU being used.
(Note 3) The DVI-D port does not support D-Sub connection by adapter.
(Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/ system cooler you install.
(Note 5) Available functions in Easytune may differ by motherboard model.
